Customized 8 Stations Hydraulic Power Units-

Customized 8 Stations Hydraulic Power Units-
Customized 8 Stations Hydraulic Power Units- Customized 8 Stations Hydraulic Power Units- Customized 8 Stations Hydraulic Power Units- Customized 8 Stations Hydraulic Power Units- Customized 8 Stations Hydraulic Power Units- Customized 8 Stations Hydraulic Power Units- Customized 8 Stations Hydraulic Power Units- Customized 8 Stations Hydraulic Power Units- Customized 8 Stations Hydraulic Power Units-
Grundlegende Informationen
Herkunftsort: Ningbo China
Markenname: TianDi
Zertifizierung: CE,ISO
Modellnummer: TDDL-
Min Bestellmenge: 20pcs
Preis: negotiable
Verpackung Informationen: Verpackt in Kartons und dann auf Holzpaletten.
Lieferzeit: 15 Arbeitstage
Zahlungsbedingungen: T/T, Western Union, l/c
Versorgungsmaterial-Fähigkeit: 2000pcs pro Monat
Bestpreis Kontakt
Produktname: 8 Stations-Hydraulikaggregate Arbeitsdruck: 180BAR
Größe des Ölhafens: G3/8 ” Tankgröße: Von 4L zu 12L
Ventil: Richtungsventil Durchflussrate: Von 2L zu 8LPM
Stromspannung: DC24V Montagetyp: horizontal
Hervorheben:

customized hydraulic power units

,

8 station hydraulic power units

,

hydraulic power units with warranty

Customized 8 Stations Hydraulic Power Units
Product Description
This Hydraulic Power Unit operates double acting cylinders, complete with 8pcs of CETOP 03 solenoid directional valves.
  • DC Hydraulic Power Unit with DC24V 1.6Kw electric motor
  • 2.1cc/r gear pump
  • 25Litres square steel tank with drain plug
  • Complete with suction filter, return oil pipe and air breather
  • Horizontal mounting
  • Max pressure: 2000PSI
  • Relief valve: RV2-08 (set pressure 2000PSI, adjustable from 50-210 bar)
  • Flow Rate: 5 l/min
  • Standard relief valve and check valve
  • Oil Port size: 1/4"BSP
  • Suitable for all kinds of double acting hydraulic cylinders
Technical Specifications
Specification Details
Motor DC24V 1.6Kw
Duty S3
Pump (cc/r) 0.75, 1.6, 2.1, 2.5, 3.2, 4.2, 4.8, 5.8, 7.0
Oil Tank (L) Plastic or Steel: 2, 4, 7, 8, 11, 13, etc.
Max. Pressure 210bar
Flow Rate 2LPM to 8LPM
Oil Port G3/8"
Valve 8 pcs Directional Valve
Tank Steel, 8L
Applications
CNC, Truck

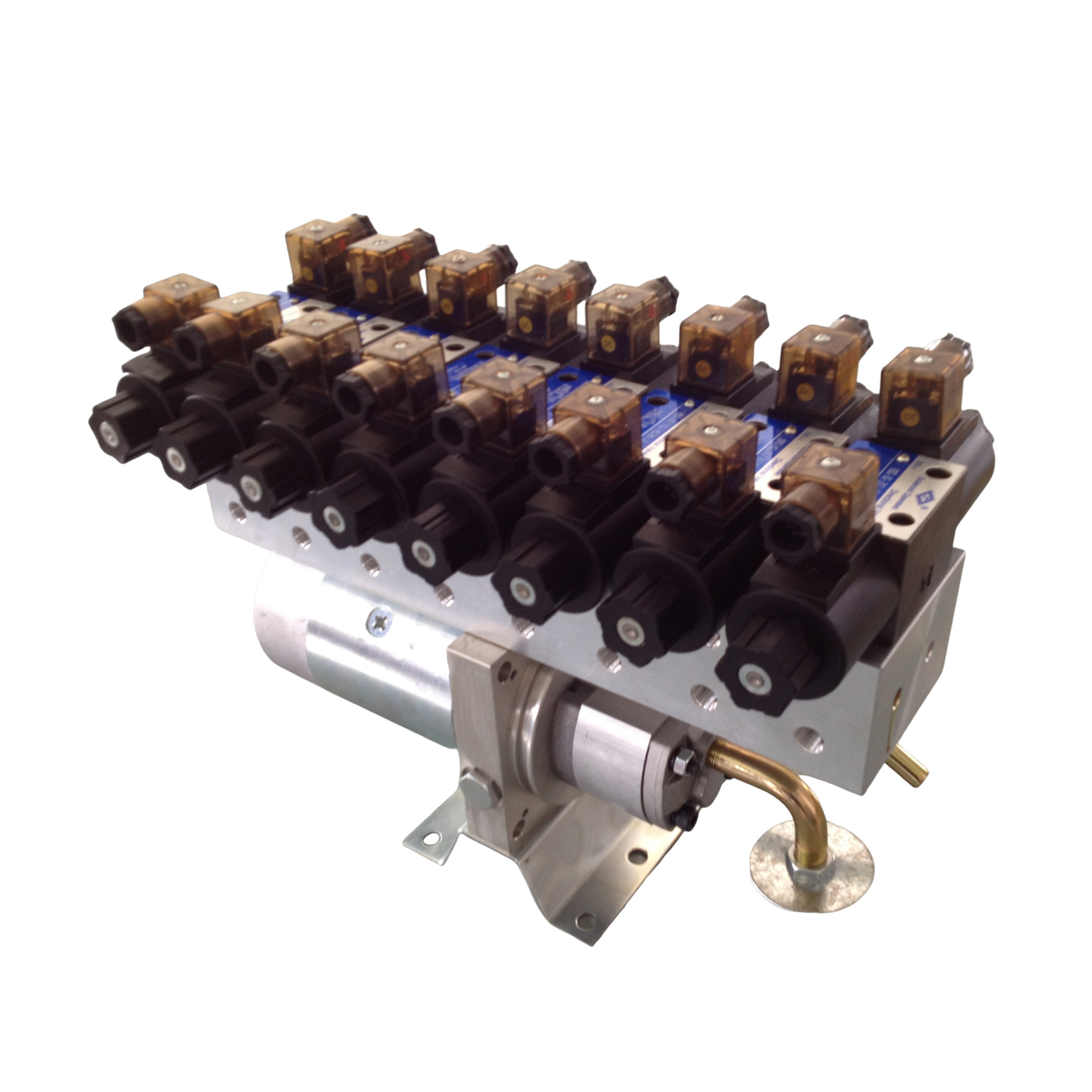

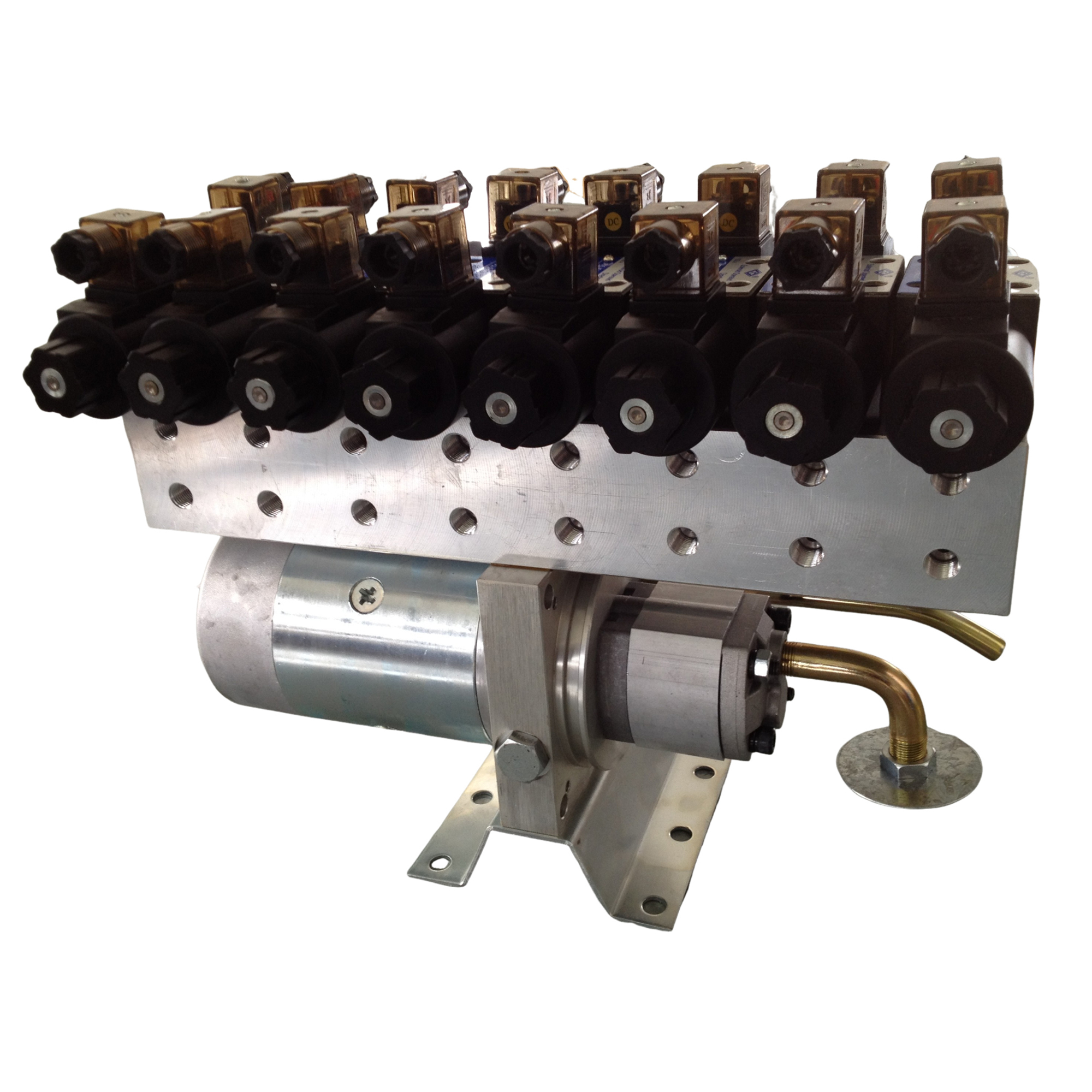

Product Images
Customized 8 Stations Hydraulic Power Units- 0 Customized 8 Stations Hydraulic Power Units- 1

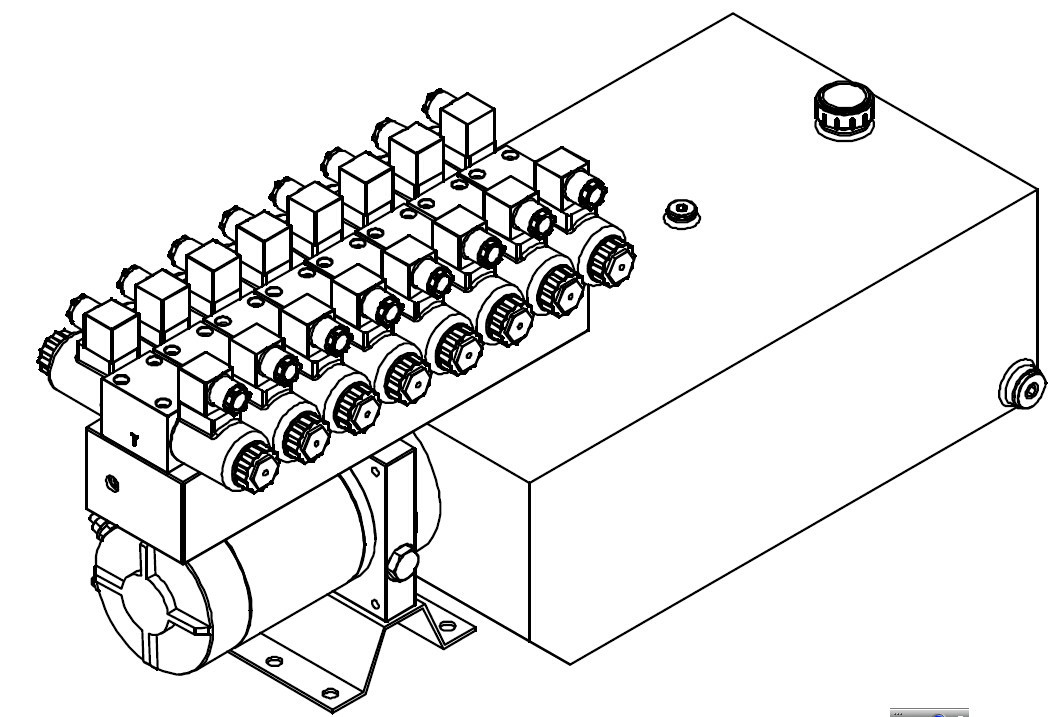

Technical Drawing
Customized 8 Stations Hydraulic Power Units- 2
Competitive Advantages
  1. TIANDI hydraulic is one of the earliest manufacturers of hydraulic packs and units, with a professional team for raw material purchasing to control costs. Our well-trained workforce ensures competitive pricing.
  2. Our export department staff is highly professional and efficient, experienced in export processing and documentation. They are available to assist with any product or process-related questions.
